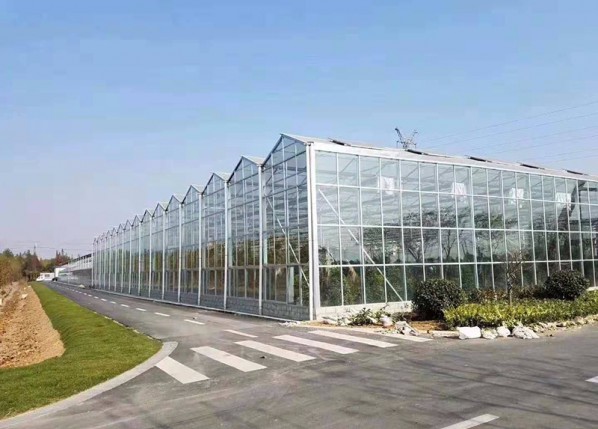

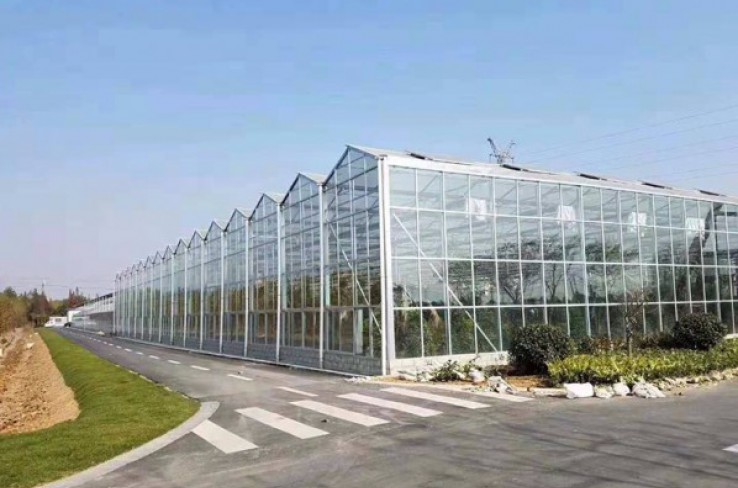

Texture greenhouse

Greenhouse structure

♦ Hot-dip galvanized steel structure, A-shaped ridge

♦ 4+9+4 float glass is used for roof and surrounding covering materials

parameter

♦ Covering material: 4+9+4 hollow float glass (or tempered)

♦ Span: 6.4m/8.0m/9m/9.6m/10.8m/12m

♦ height: 3m/4m/4.5m/5.5m/6m, etc.

♦ Column spacing: 4m/8m

♦ Top window: long or staggered

♦ Side window: rack flip window, sliding window, electric vertical sliding window

♦ Supporting facilities: use different supporting equipment according to greenhouse function requirements

Greenhouse characteristics

♦ Solved the contradiction between greenhouse insulation and light transmission;

♦ Good insulation in winter;

♦ Different glass sealing structure solves the problem of roof leakage;

♦ Glass greenhouse has the characteristics of beautiful appearance, good light transmission, good display effect and long service life. For low-light, geothermal energy and waste heat of power plants, glass greenhouse is a better choice. The glass greenhouse is suitable for the middle and lower reaches of the Yangtze River;

♦ This type of greenhouse can realize automatic control. The supporting equipment can choose heating system (hot air or water heater), sun screen system, micro-fog or water curtain cooling system, C02 supplement system, fill light system and spray, drip irrigation and fertilization. System, computer integrated control system, top sprinkler system, etc.
